STAY CONNECTED ANYTIME, ANYWHERE

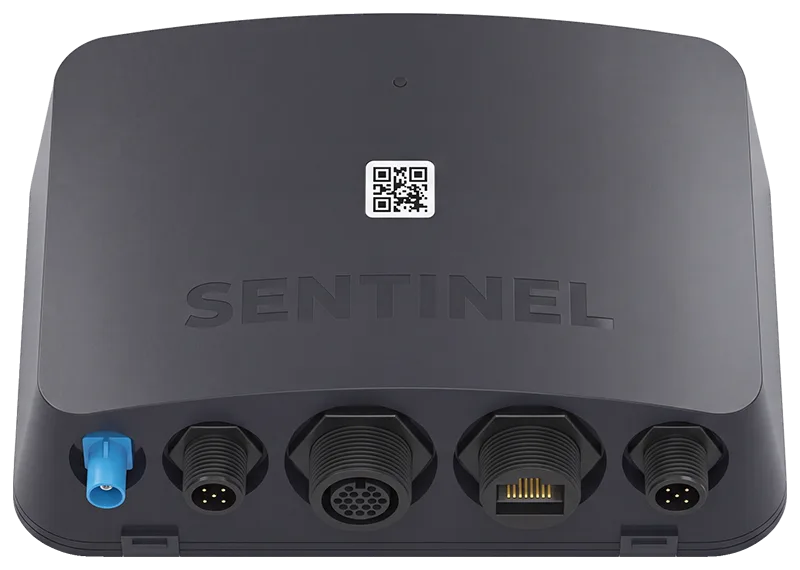

The Sentinel Boat Monitor BM-50 is an advanced marine telematics device, built for challenging marine environments. With low power consumption, native NMEA2000 support, and wireless expandability, it meets the demands of both new installations and retrofits. Available in Lite, Standard, and Pro versions, the BM-50 provides stable and reliable connections across all systems, allowing boat owners to monitor, manage, and protect their vessels in real-time from anywhere.
BASIC TRACKER
Lite
- 3 analog inputs
- 2 digital inputs
- Position
- Bluetooth
- RS-485*
BM-40 Successor
Standard
- 4 analog inputs
- 4 digital inputs
- 1 relay
- Position
- NMEA2000
- Bluetooth
- RS-485*
built for future
PRO
.png)
- 4 analog inputs
- 4 digital inputs
- 2 relays
- Position
- NMEA2000
- Bluetooth
- Ethernet
- WIFI
- RS-485*

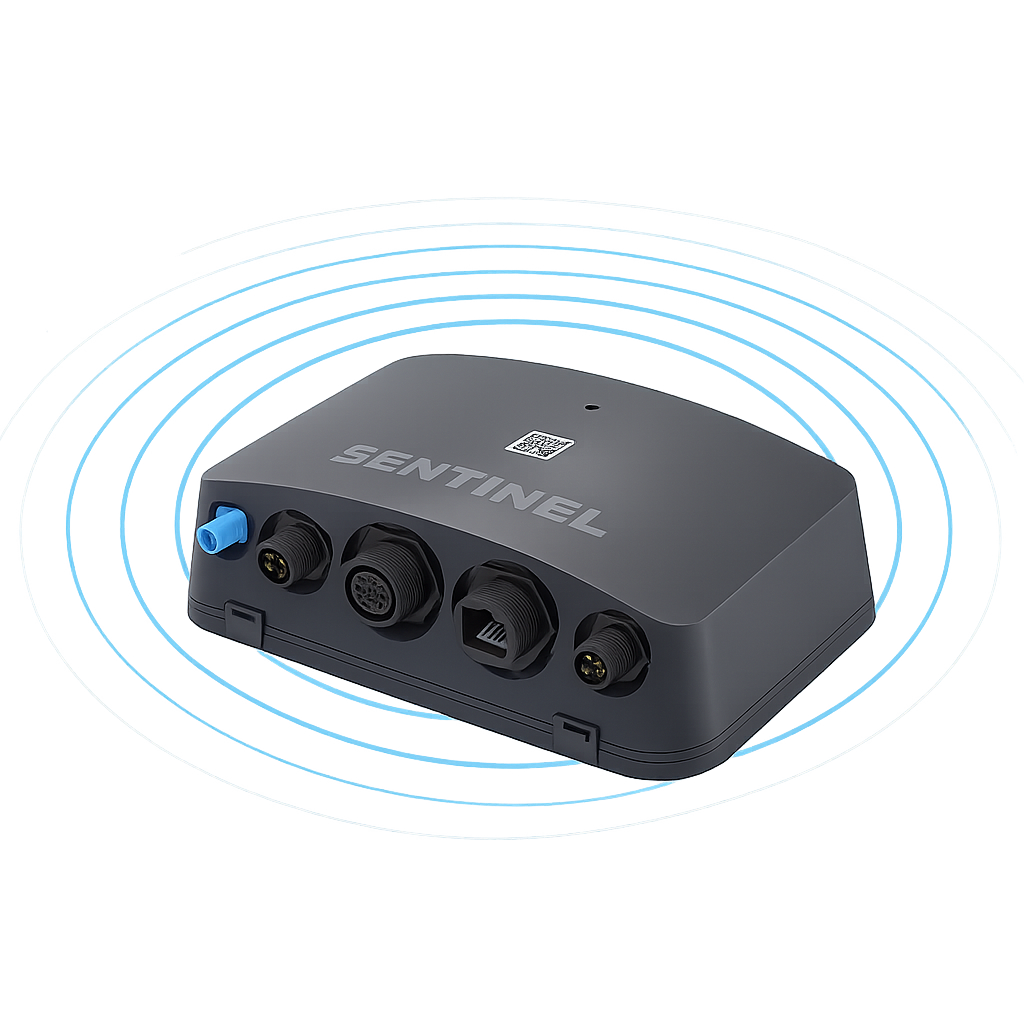

Full Stack Connectivity
The BM-50, equipped with Bluetooth, WiFi, CAN, Ethernet, NMEA2000, and RS-485 (features vary by version), ensures seamless integration with the boat’s instrument backbone. Both Standard and Pro versions support NMEA2000, while the Pro version includes dual CAN interfaces for advanced connectivity. All versions offer mobile connectivity, providing a reliable link to essential systems.
Environmental Monitoring

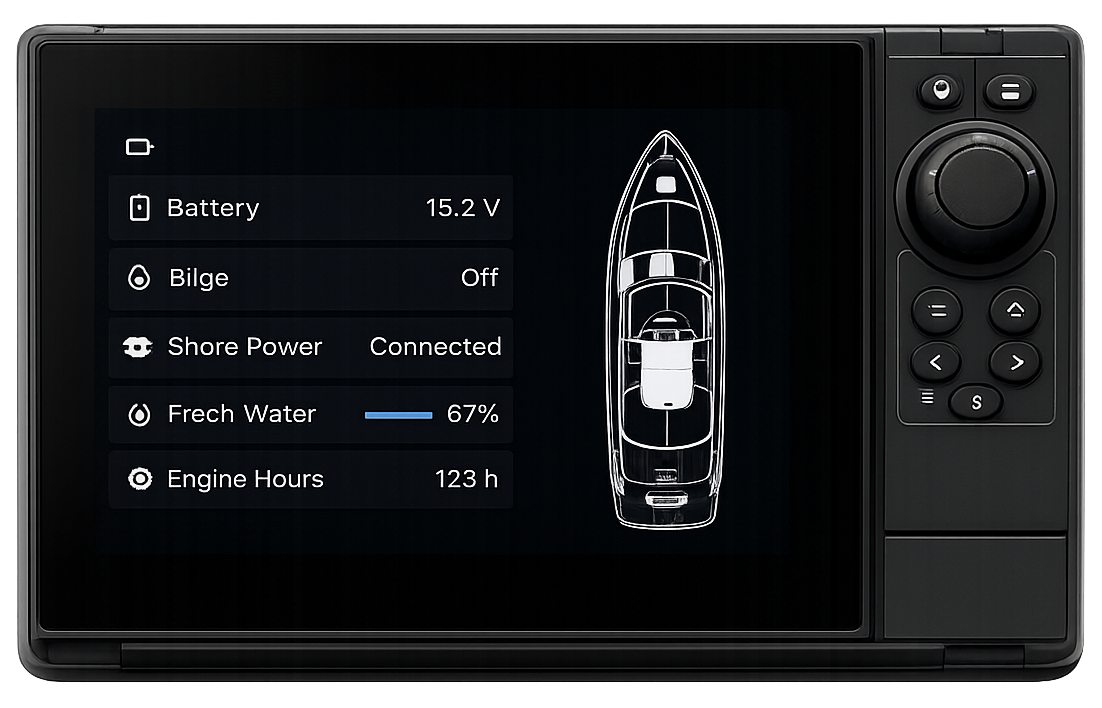

Equipped with multiple sensor inputs, the BM-50 continuously monitors essential systems such as battery levels, shore power, bilge pump activity, door access, and more. Digital inputs for specific sensors (e.g., bilge, door, shore power) enable tailored monitoring configurations, all managed easily through the Sentinel app.
Remote Control Capabilities
In the Standard and Pro versions, the BM-50 includes relay outputs, enabling remote control of connected devices such as lights or other onboard systems. Compatible with digital switching systems like CZone, this feature ensures critical devices can be activated or managed remotely, providing convenience and control even when you’re off the boat.
Power Efficiency and Safety
Built for efficient energy consumption, the BM-50 operates on 12-30 V DC and includes safety features like battery discharge protection on the power supply. It’s designed to function reliably within a broad voltage range and challenging temperature conditions, ensuring continuous operation even in demanding marine environments.
PCB form
The BM-50 can be delivered in PCB form, ready for seamless white-label integration into OEM marine products, enabling them to become “IoT ready” with advanced connectivity and real- time monitoring capabilities.
Sentinel Hub
The Sentinel Hub enhances your boat’s monitoring capabilities by adding additional inputs and outputs to the system. It wirelessly connects to the Boat Monitor, simplifying the installation or retrofitting of extra sensors. Powered either directly or by its internal battery, this versatile device enables real-time monitoring of boat systems like engines, batteries, and security, providing reliable data and control for both boat owners and fleet operators.
Sentinel collaborates with trusted external partners to offer sensors designed for easy installation and reliable performance. Many of these sensors are wireless and battery-powered, enabling flexible placement on your boat without the need for complex wiring. With a battery life of up to 2 years, they ensure long-term monitoring and reduce the need for frequent maintenance, providing seamless integration with Sentinel’s advanced solutions.
Shore Power Sensor
Ensure reliable dockside power with the Shore Power Sensor. This sensor monitors your shore power connection and instantly alerts you via the Sentinel app if the connection is lost, keeping essential systems like refrigerators and battery chargers running smoothly while docked.
Gen-Set Ignition Sensor
Take control of your generator with the Gen-Set Ignition Sensor. This sensor tracks generator activity, notifying you through the Sentinel app if it starts or stops unexpectedly, helping you ensure reliable power supply and prevent unauthorized use.
Temperature and Humidity Sensor
Maintain a comfortable and safe onboard environment with the T emperature and Humidity Sensor. This sensor continuously monitors cabin conditions, sending real-time updates and alerts through the Sentinel app if set thresholds are exceeded, helping you prevent issues like mold or overheating.
Air Conditioning Ignition Sensor
Manage your boat’s air conditioning effectively with the Air Conditioning Ignition Sensor. This sensor monitors the status of your AC system, letting you remotely check if it’s active and receive alerts if it turns on unexpectedly. It helps you optimize energy use and reduce unnecessary wear.
Motion Sensor
Protect sensitive areas on your boat with the Motion Sensor. This sensor detects movement in specific zones and immediately notifies you through the Sentinel app if any unusual activity occurs. Ideal for securing cabins or restricted areas, it provides an additional layer of security for peace of mind. COMFORT Air Conditioning Ignition
Boat Hatch Sensor
Ensure the security of your boat with the Boat Hatch Sensor, which monitors hatches for unauthorized access. If any hatch is opened unexpectedly, you’ll be alerted through the Sentinel app, allowing you to keep your vessel secure, even from a distance.
Tender Anti-Theft Sensor
Keep your tender safe with the T ender Anti-Theft Sensor. This sensor detects any unauthorized movement or tampering, sending instant alerts to the Sentinel app. Whether you’re nearby or ashore, you can rest easy knowing your tender is protected.
Boat Door Sensor
Enhance security with the Boat Door Sensor, which monitors the status of doors and hatches for unauthorized access. Receive an instant alert through the Sentinel app if a door is unexpectedly opened, so you can respond immediately, even when away from your boat.
Outboard Motor Anti-Theft Sensor
Protect one of your boat’s most valuable components with the Outboard Motor Anti-Theft Sensor. This sensor detects any unauthorized movement or tampering, instantly notifying you via the Sentinel app. Whether you’re on board or ashore, you’ll be one step ahead of potential security threats.
Bilge High Water Sensor
Stay ahead of potential flooding with the Bilge High Water Sensor, which monitors bilge water levels and sends immediate alerts through the Sentinel app if levels exceed a safe threshold. Designed to detect early signs of flooding, it allows you to take swift action to protect your vessel from unexpected water ingress.
